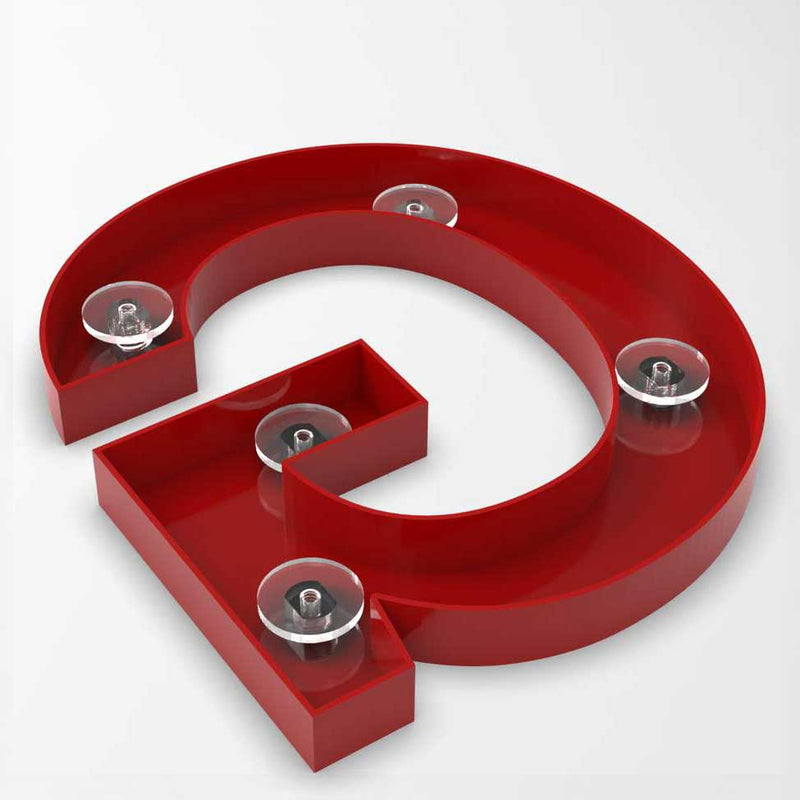

Plastic pads are glued to the back. These are mounted using construction grade adhesive on the pads, and sticking the letters on a wall. See the Technical Drawing for more details
1/4" thick or thicker sign elements are drilled and tapped on the back to receive threaded studs. 1/8" thick sign elements are too thin to be drilled so blocks are attached to receive the threaded studs.
Strips of VHB tape are applied to the back of the product. This option is warrantied for interior installation on walls that are smooth, clean, and dry.
3/8" thick or thicker sign elements are drilled and tapped on the bottom to receive threaded studs. This allows letters to be installed standing upright on a horizontal surface.
3/8" thick or thicker sign elements are drilled and tapped on the top to receive threaded studs. This allows letters to be installed so they hang vertically from their top.
Holes are threaded into the bottom of the letters so they can be screwed to an aluminum rail or c-channel. The rail is attached to the mounting surface so that the letters stand upright. The rail can be painted or anodized.
Holes are threaded into the top of the letters so they can be screwed to an aluminum rail or c-channel. The rail is attached to the mounting surface so that the letters hang from their top. The rail can be painted or anodized.
A flat aluminum rail attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The rail can be painted or anodized.
Two flat aluminum rails are attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The rails can be painted or anodized.
An aluminum c-channel attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The c-channel can be painted or anodized.
Two aluminum c-channels are attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The c-channels can be painted or anodized.
Our spacing guide is a 2 inch roll of paper with marks indicating the bottom portion of each sign element. This is often used for signs with pad and combination mounting types.
