Solid brass division 10 architectural sign letter with back stud mounting and spacers

Mounting Types

Back Stud Mount

1/4" thick or thicker sign elements are drilled and tapped on the back to receive threaded studs. This allows the sign elements to be mounted flush against the wall. 1/8" thick sign elements are too thin to be drilled so blocks are attached to receive the threaded studs, which means the letters will stand out from the wall by about 1/4". See the Technical Drawing for more details

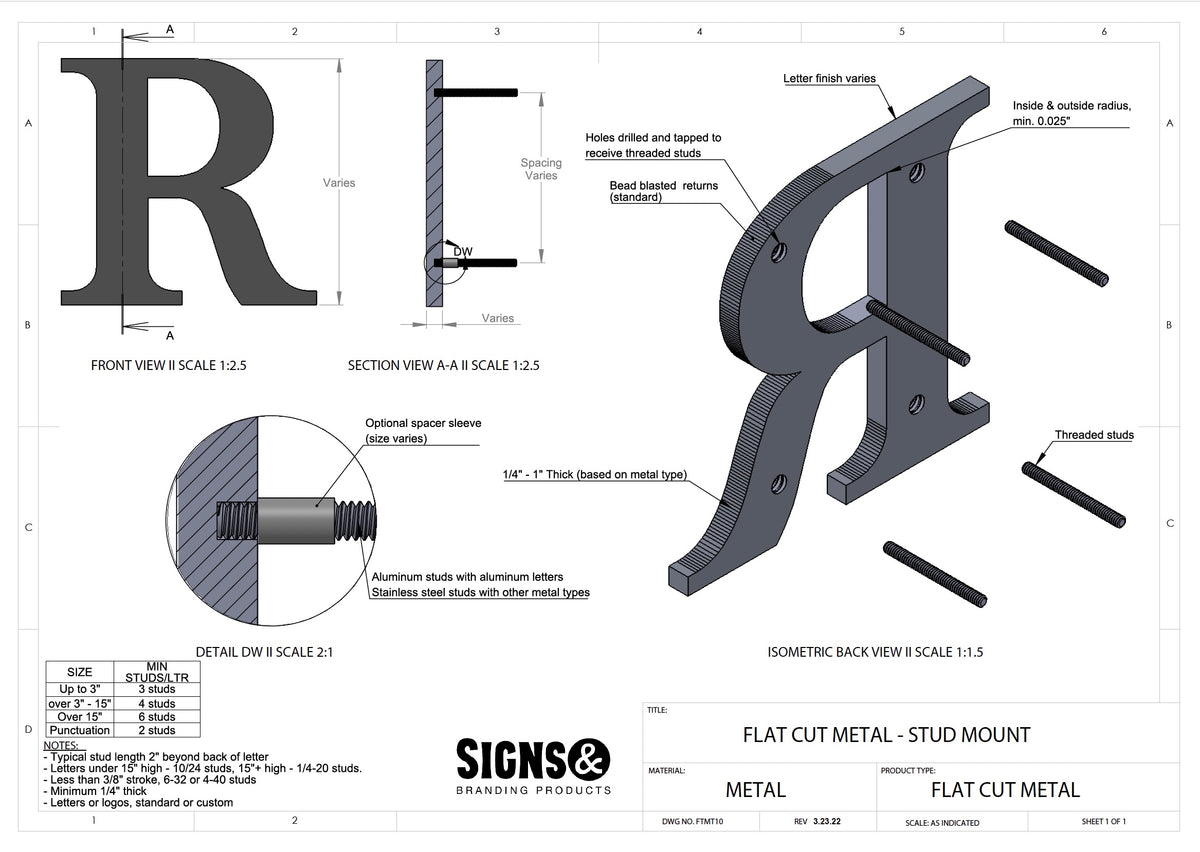

Technical Drawing

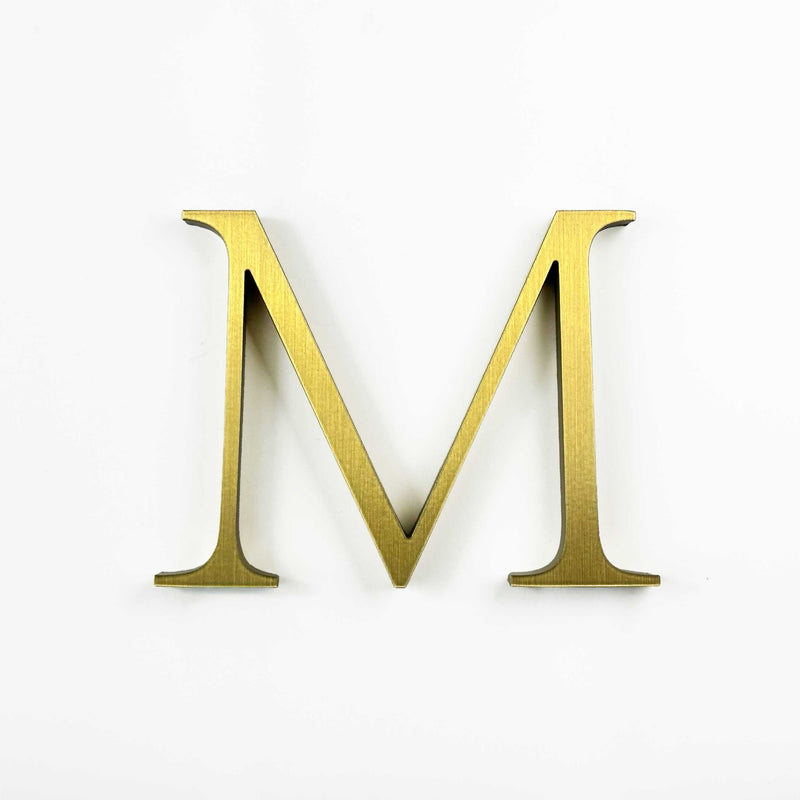

Front

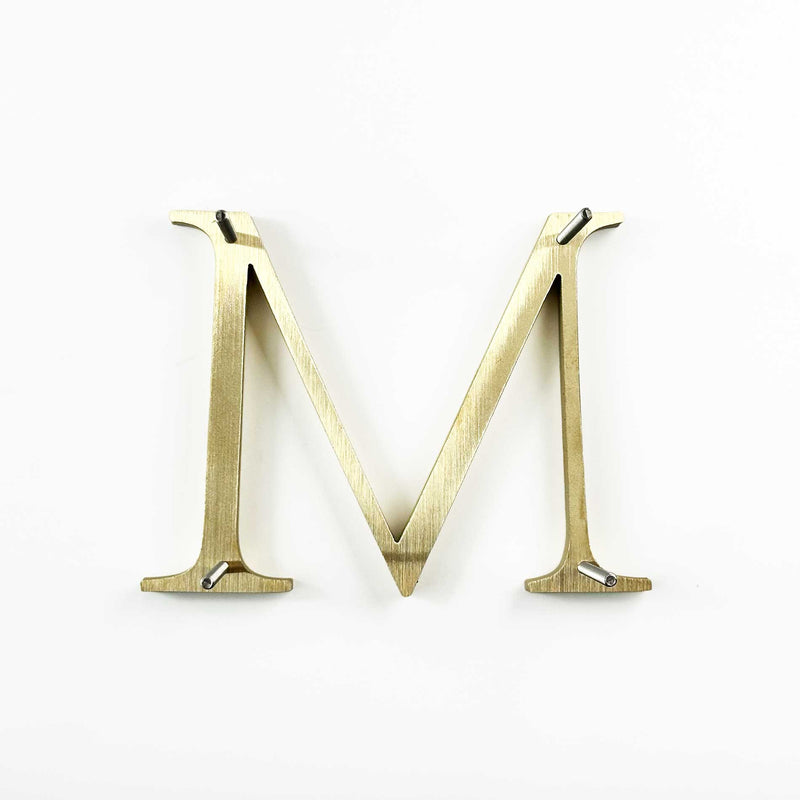

Back

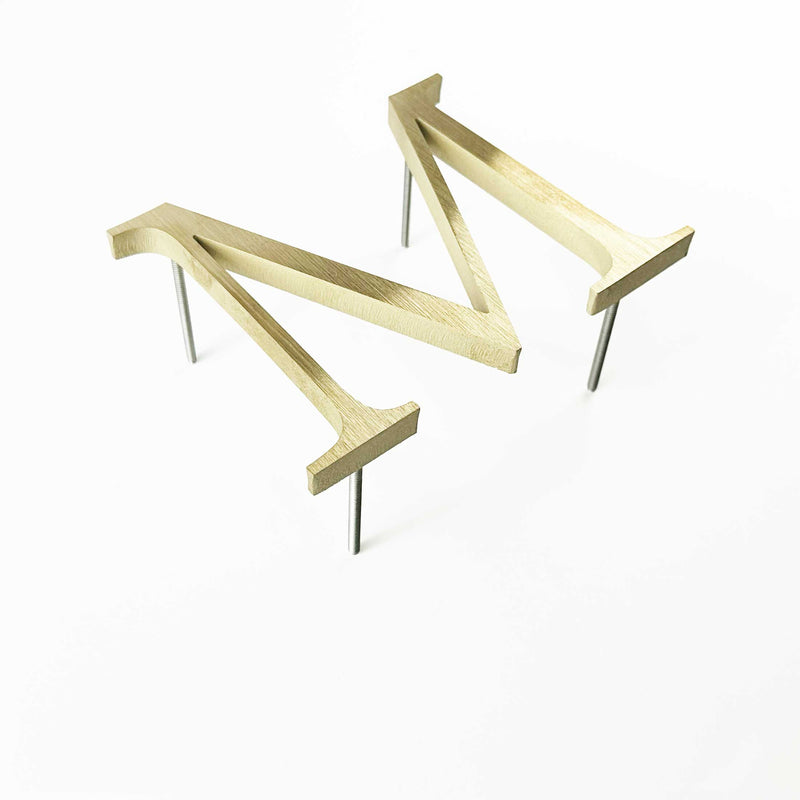

Front (Angled)

Solid brass division 10 architectural sign letter with back stud mounting and spacers

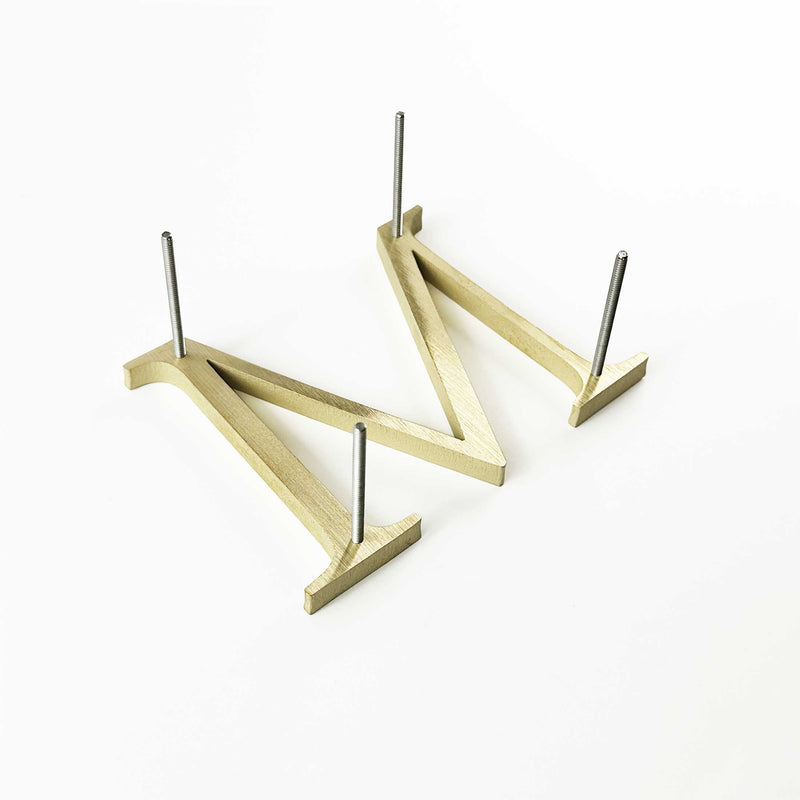

Back (Angled)

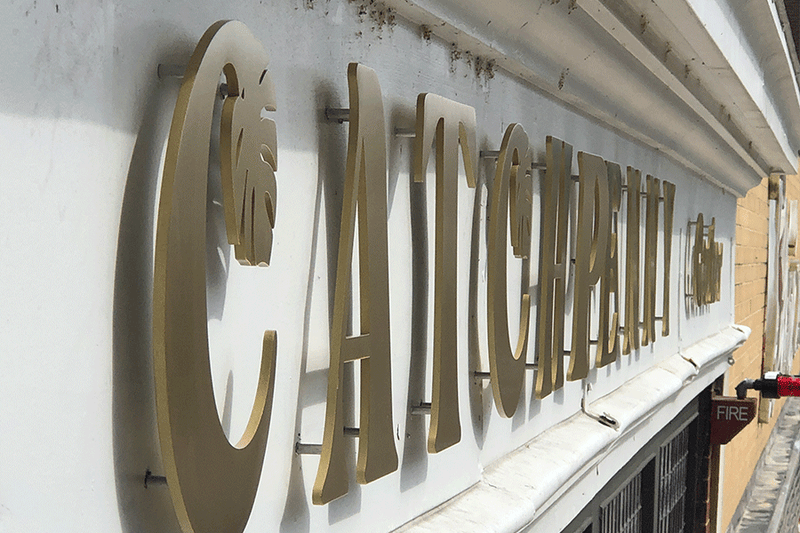

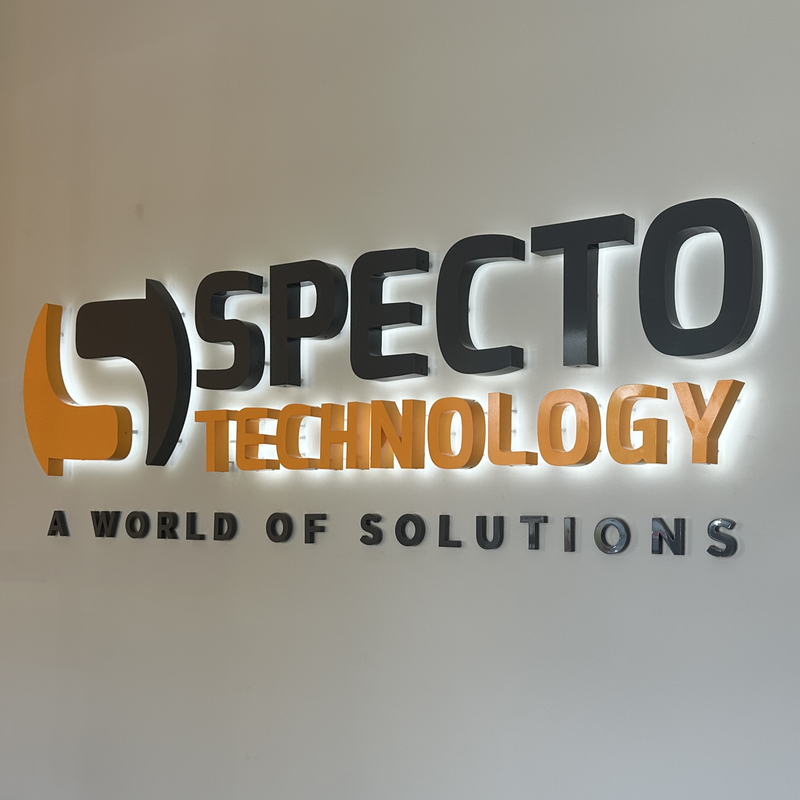

Back Stud Mounted Sign Examples

Mounting Options

  • Solid brass division 10 architectural sign letter with back stud mounting and spacers

    Back Stud Mount

    1/4" thick or thicker sign elements are drilled and tapped on the back to receive threaded studs. 1/8" thick sign elements are too thin to be drilled so blocks are attached to receive the threaded studs.

    Learn More
  • Solid brass division 10 architectural sign letter with double-sided tape mounting.

    Double-Sided Tape Mount

    Strips of VHB tape are applied to the back of the product. This option is warrantied for interior installation on walls that are smooth, clean, and dry.

    Learn More

  • Bottom Stud Mount

    3/8" thick or thicker sign elements are drilled and tapped on the bottom to receive threaded studs. This allows letters to be installed standing upright on a horizontal surface.

    Learn More

  • Top Stud Mount

    3/8" thick or thicker sign elements are drilled and tapped on the top to receive threaded studs. This allows letters to be installed so they hang vertically from their top.

    Learn More

  • Top & Bottom Stud Mount

    3/8" thick or thicker sign elements are drilled and tapped on the top & bottom to receive threaded studs.

    Learn More

  • Bottom Rail Mount

    Holes are threaded into the bottom of the letters so they can be screwed to an aluminum rail or c-channel. The rail is attached to the mounting surface so that the letters stand upright. The rail can be painted or anodized.

    Learn More

  • Top Rail Mount

    Holes are threaded into the top of the letters so they can be screwed to an aluminum rail or c-channel. The rail is attached to the mounting surface so that the letters hang from their top. The rail can be painted or anodized.

    Learn More

  • Single Back Rail Mount

    A flat aluminum rail attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The rail can be painted or anodized.

    Learn More

  • Double Back Rail Mount

    Two flat aluminum rails are attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The rails can be painted or anodized.

    Learn More

  • Single Back C-Channel Mount

    An aluminum c-channel attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The c-channel can be painted or anodized.

    Learn More

  • Double Back C-Channel Mount

    Two aluminum c-channels are attached to the back of the letters. This option minimizes the amount of holes drilled into the mounting surface. The c-channels can be painted or anodized.

    Learn More

  • Bottom Angle Bracket Mount

    An aluminum angle bracket is attached to the back of the letters so they can be mounted standing upright on a horizontal surface.

    Learn More

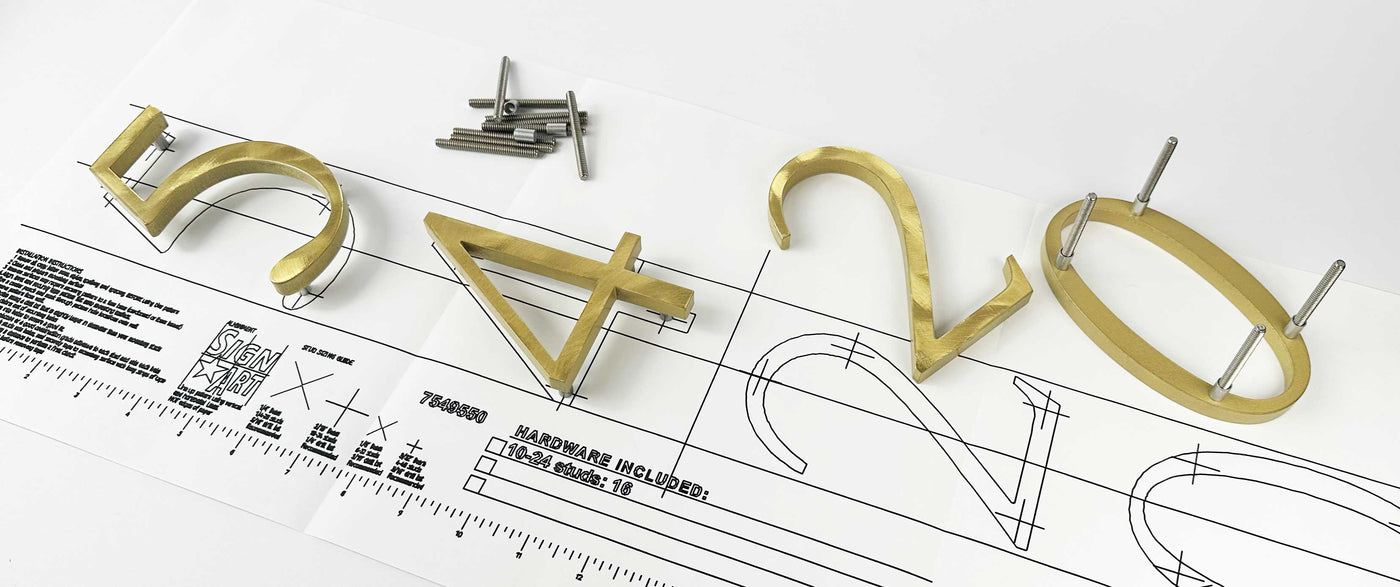

Random arc brushed brass division 10 architectural sign letters with stud mounts on mounting template

Mounting Guides

Drill Pattern

Our drill patterns are computer-generated tracings of your sign design with mounting hole locations. They are printed on durable, tear-resistant paper that is up to 54 inches tall and as wide as needed for your design. This guide is usually provided for any stud mounted product. It may come in pieces depending on the size of the installation. Installation instructions and a legend are printed in the lower left corner.

Installation Video
